  7. Feeding

更新时间:2008.09.09 浏览次数:

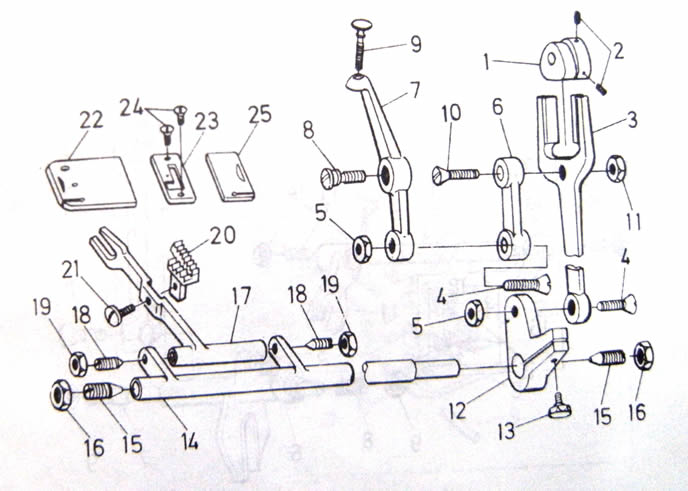

7.  Feeding

1

GT103

Feeding cam

14

GH128

Feeding shaft

2

GS165

Feeding cam screw

15

GS169

Large peaked screw

3

GH125

Tooth fork

16

GL109

Large  peaked nut

4

GS166

Needle space connecting rod screw

17

GR261

Tooth bracket

5

GL105

Needle space connecting rod nut

18

GS170

Small peaked screw

6

GH126

Needle space connecting rod

19

GL105

Small peaked nut

7

GR260

Needle space base

20

GM106

Feeding tooth

8

GS167

Slant range base screw

21

GS171

Feeding tooth screw

9

GS168

Slant range adjustable screw

22

GR262

Large push pedal

10

GS166

Tooth fork connecting screw

23

GM107

Needle plate

11

GL105

Tooth fork connecting nut

24

GS172

Needle plate screw

12

GH127

Feeding crank

25

GR236

Small push pedal

13

GS148

Feeding crank screw
