  3. Needle bar

更新时间:2008.09.09 浏览次数:


3. Needle bar

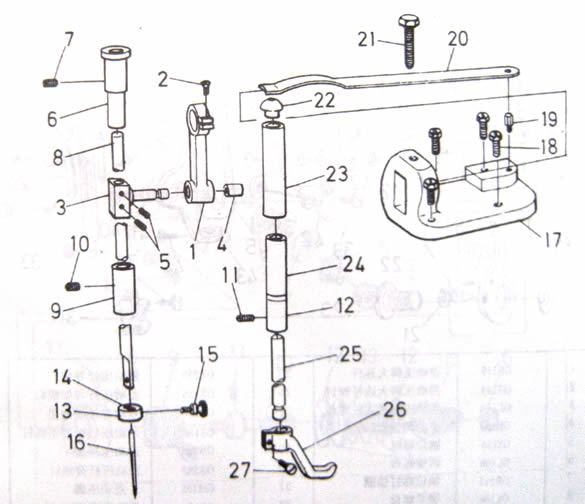

(图三、针杆)

1

GH117

Small connecting rod

15

GS145

Needle clip screw

2

GS123

Small connecting rod screw

16

GV2

Needle

3

GH118

Needle bar connecting shaft

17

GR244

Pressing bar spring base

4

GU105

Needle bar connecting shaft rotating column

18

GS147

Pressing bar spring base screw

5

GS165

Needle bar connecting shaft screw

19

GX118

Pressing bar spring pin

6

GO110

Needle bar bushing

20

GW107

Pressing bar spring

7

GS152

Needle bar bushing screw

21

GS146

Pressing bar spring screw

8

GZ108

Needle bar

22

GR274

Pressing bar bushing cap

9

GO113

Needle bar lower bushing

23

GO111

Pressing bar upper bushing

10

GS152

Needle bar bushing screw

24

GO112

Pressing bar lower bushing

11

GS152

Pressing bar lower bushing screw

25

GZ109

Pressing bar

12

GO112

Pressing bar lower bushing

26

GM104

Presser foot

13

GR242

Needle clip

27

GS148

Presser foot screw

14

GR243

Needle clip key
