产品介绍
GN20系列包边机，其中GN20-1适用各种规格的麻袋包缝。GN20-2型适用于生产各种规格的地毯包边。GN20-3型集装袋包边机（锁边机）适用于各种规格的集装袋包缝。
Brief Introduction of product

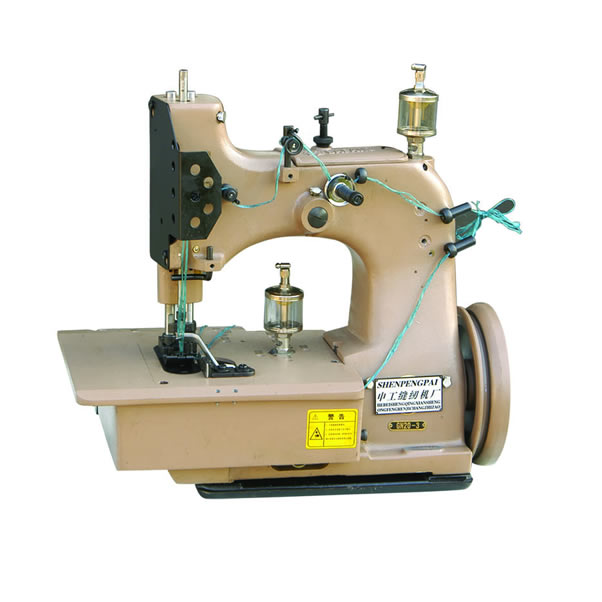

GN20 series binding machine. GN20-1 is suitable for hemming gunnysacks in different specifications. GN20-2 is suitable for binding carpets in different specifications. GN20-3 type binding machine machine (Overlock machine)for containing bag is suitable for hemming containing bage with different specifications.
技术规格 Technical Specifications
|
缝纫速度 1400针/分钟(S/Min.)
Speed of sewinG |
| 最大缝纫厚度 14mm
The maximum sewing thickness |
|
最大包边宽度 19mm
The maximum binding width |
| 针迹调整范围 3-15 mm
Adjustment range of stitch |
|
机针型号 GN20-230/26～33＃
Model of needle |
|
机头净重 35kg
N.W of head section |
|
