 当前位置:首页 - 产品中心 - 高速无梭织带机

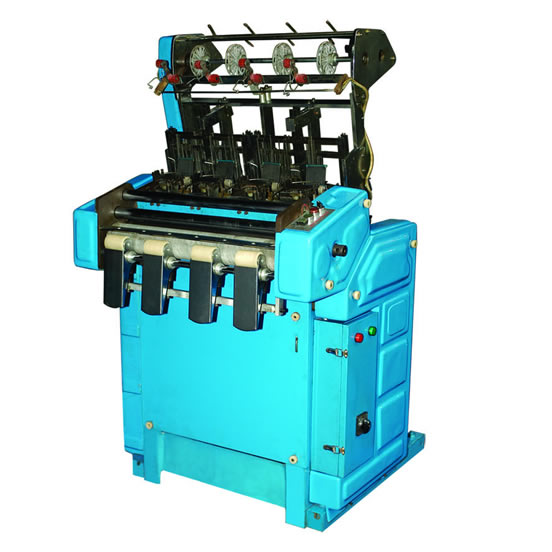

  TY-4/65高速无梭织带机

产品名称:TY-4/65高速无梭织带机

产品编号:014
产品型号:TY-4/65
更新时间:2008.08.19
出品单位:河北申工缝纫机制造有限公司---|厚料缝纫机|皮革缝纫机|集装袋缝纫机|帆布缝纫机|编织袋缝纫机|地毯包边机|缝包机|缝纫机零件
浏览次数:
   产品详细介绍

主要特点

 高速无梭织带机是以进口织机为基础,经专家根据集装袋吊带、围带的特性研发的新一代产品。

  该机具有技术先进、结构合理、运行平稳等优点。自动供油润滑设计,有效的降低了机件的磨损。并配备了先进的断纬、完纬自动停车装置,后置自动卷取装置,是织物不落地,保持成品清洁,并节省了人工盘带的工序。





Brief Introduction of  Enterprise

   High-speed ribbon loom shuttle is new product developed by experts according to the characteristics of circle strip and sling of containing bag on the basis of imported loom.

   It has advantages of advance technique,reasonable structure and working smoothly.The automatic fuel feed jubrication design reduces the wear of parts in effective.It was equipped with the advanced staplings and finish picks automatic stop working unit and postposting automatlc coiling apparatus, so it nakes the fabric not fall to the ground,keep the end product clean and save the working procedure of manual coli strip.



缝项目名称   单位(unit    TY-2/110             TY-4/65

Ltem name



织带条数     条(piece      2                    4

织带宽度        mm              最大100                  20-65

Ribbon qunges                      Nax



克重范围        g                 90                   5

单条织带速度   m/h            80-125              100-150

Speed of one ribbon

经纱头纹数                         520                    520

Warp line counting

经纱规格                   聚丙烯丝3300±100D        聚丙烯丝3300±100D

Warp specification      poypropyiene silk3300±100D      poypropyiene silk3300±100D

经纱名称规格             丙纶长丝800D-1000D   丙纶长丝800D-1000D Woof name specification      polyptopyiene fibre filament800D-1000D       polyptopyiene fibre filament800D-1000D

锁链丝名称规格        丙纶长丝600D-1000D    丙纶长丝600D-1000D

Lock silk name specification  polyptopyiene fibre filament800D-1000D     polyptopyiene fibre filament800D-1000D

送经方式              纬向积极送丝、经向消极送丝    纬向积极送丝、经向消极送丝

Send and pass the way

        The latituns towards and sends silks   The latituns towards and sends silks

               axtively                              axtively

Through to disappear magnitude give silk    Through to disappear magnitude give silk

主电机功率       KM          1.1       1.5          1.5

Power of the main eiectrical

卷取电机力距     Nm          0.8         1.2            1.5

Fetches moment of the electrcal
