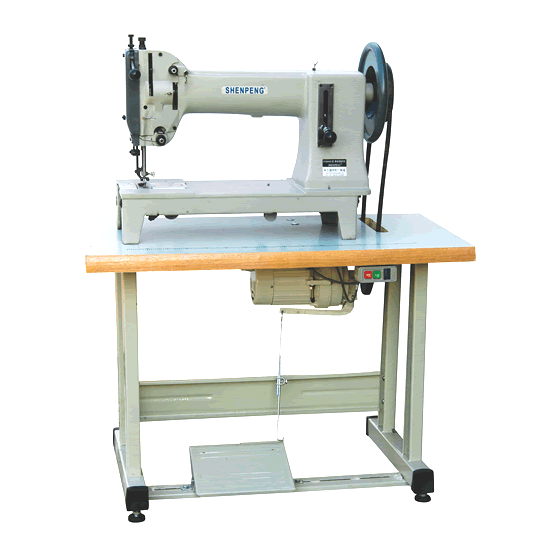

  FGB6800型高性能集装袋缝纫机

产品名称:FGB6800型高性能集装袋缝纫机

产品编号:20613-425
产品型号:FGB6800型
更新时间:2008.09.09
出品单位:河北申工缝纫机制造有限公司---|厚料缝纫机|皮革缝纫机|集装袋缝纫机|帆布缝纫机|编织袋缝纫机|地毯包边机|缝包机|缝纫机零件
浏览次数:
   产品详细介绍

机器简介

   FGB6800高性能集装袋缝纫机,采用单直机针、摆梭勾线、上下复合送料,脚踏回缝,操作简便,构成双线锁式线迹。由于本机器采用特殊的上送料机构和压脚交叉提升机构,它除具有一般工业缝纫机的各项性能之外,其最大优点是对各种集装布、吊带等缝料和潜移性较大的中厚料,在缝纫过程中能使上层和下层送料量达到一致,在高低重叠缝纫和爬坡缝纫时,送料爽、针距稳定、线迹平整而美观、缝厚料、薄料性能稳定、操作省力等优点,同时还可以按集装袋工艺的特殊要求进行调节,正缝、倒缝、打横针操作简便自如,并可缝纫加防尘条的包装制品。

   本机独特的压脚提升装置已申请国家发明专利。

Brief Introduction of  Enterprise

FGB6800 High-performance sewing machine for containing bag adopts single straight needle. oscillat-ing shuttle thread hooking mechanism.upper and lower combined feeding and foot pedal back sewing. It is easy to operate .It forms 2-thread locd stitch. This machine adopts special upper feeding mechanism and presser cross lifting mechanism, besides the various properties same with other general industrial sewing ma-chine, it has advantages of same feeding size of upper layer and lower layer when sewing different containcloth and sling and medium or thick material with big potential moving property, easy to feeding when makehigh and low over-lap sewing and climbing sewing. It has sterdy stitch size, smooth and beautiful stitch. It is easy to operate and has steady property when sewing thick material or thin material. At the same time, it couldbe regulated according to special requirement of containing bag technolgy. It is easy to sew in forward stitch, invrted stitch and horizontal stitch. It could sew the packing products with dust-proof strip.

The special presser lifting mechanism of this machine has applied for the National Patent of Invention.



主要技术规格   Technical Specifications



缝纫速度                   900针/分

Speed of sewing

机头外型                   736×270×590 mm

Shape of head

针距长度                            0-13 mm

Length of needing distanse

电动机功率                     550瓦 1400转/分(缝纫机专用电机)

Power of electric motor      550W 1400R/Min (Special purpose electric motor for sewing machine)

压脚提升高度       手控14 mm 脚控22 mm

Presser lifting        Manual control 14mm  feet control 22mm

操作空间                      200×420mm

Operating space

机针型号                      7×(200/230/250/300)

Model of needle

缝线型号                腊线25/3∽18/7股,麻线2X7股,尼龙线2∽24号

Model of sewing thread   Waxed thread 25/3∽18/7strands flaxen thread2X7 strands Nylon thread   No. 2∽24
